Implant V3

mis_v3_implant

MORE BONE

Where it matters most…



MIS is pleased to present a true revolution in the design of implants: V3 implant system offers immediate biological benefits and better performance. The basis of the concept of biological implants V3 is getting more bone and soft tissue in key locations.This ensures optimal osseointegration and support for the soft tissue. This in turnaccelerates healing and improves esthetic results.

Less titanium, more bone

The unique triangular shape of the implant V3 makes titanum less visible in the esthetic zone and you can see more bone and soft tissue. This allows for betterreconstruction and facilitates the management of soft tissue. V3 implants pose for physicians better starting point. At the stage of implant placing is maintained greateramount of bone and soft tissue.

v3-stress-reduction-1

More Bone

The compression-free gaps around the coronal area of the V3 provide a reservoir for blood pooling and the formation of blood clots, for faster implant integration and accelerated bone growth.



v3-more-bone

Stress Reduction

The gaps around the sides of the implant neck result in an open, compression-free zone. Crestal bone loss is minimized by reducing stress in the cortical bone.

v3-stress-reduction-1

Implant Neck

The triangular shape at the V3 neck provides high immediate crestal stability and maximum bone preservation. Anchorage is achieved at three points without compromising crestal primary stability.

v3-platform-switching

Platform Switching

The V3 incorporates platform switching to preserve the crestal bone around an implant for better bone preservation and to provide an excellent gingival seal for high soft tissue volume.

v3-conical-connection

Conical Connection

The 12° conical connection creates an ultimate seal and ideal connection between the implant and abutment with built-in platform switching, reducing micro-movements.

v3-micro-rings

Micro-rings

Micro-rings on the neck of the implant assist in reducing bone stress and bone resorption, and increase BIC.

v3-surface-treatment

Surface treatment

The surface roughness and micro-morphology is a result of sandblasting and acid etching. This proven MIS surface technology provides excellent osseointegration resulting in long-lasting clinical success.

v3-flat-apex

Flat Apex

The flat apex allows good grip into bone, especially in immediate placement procedures.

v3-final-drill

Final Drill

Each V3 implant comes with a single-use final drill, suitable for all drilling protocols.

Brochures

MIS implants conical connection

MIS V3 catalog

mnews-1

MIS V3 flyer

MiS Conical Connection user manual

MIS implants conical connection prosthetic options

Features

Conical connection: The 12° conical connection creates an ultimate seal and ideal connection between the implant and abutment with built-in platform switching, reducing micro-movements.

Micro-rings: Micro-rings on the neck of the implant assist in reducing bone stress and bone resorption, and increase BIC.

Color Coding: All V3 implants, superstructures and tools are color-coded for easy identification of platform sizes.
Packaging: Each V3 implant comes with a sterile cover screw and single-use final drill, suitable for all drilling protocols. The sterile inner tube is fitted with a special titanium sleeve that has an anti-rotation grip, to ensure easy engagement between the insertion tool and the implant.

Surface treatment: The surface roughness and micro-morphology is a result of sandblasting and acid etching. This proven MIS surface technology provides excellent osseointegration resulting in long-lasting clinical success.

Raw material: All MIS implants are made from Ti-6Al-4V ELI (Grade 23), the higher purity version of Ti-6Al-4V. This specific type of alloy combines biocompatibility, excellent fatigue strength and low elastic modulus. These benefits make Ti-6Al-4V ELI mechanically superior to titanium grade 4 and the ultimate dental and medical titanium grade. Similarly to commercially pure titanium (Grades 1-4), the outer surface of all MIS implants are comprised of a thin layer of pure titanium oxide (TiO2).

Technical info

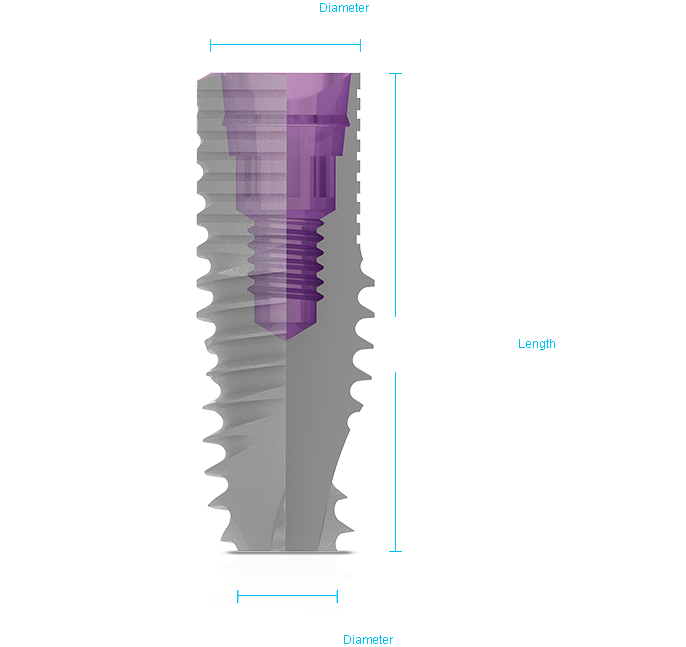

v3-specifications

Conical connection

Micro-rings

Dual thread

Sand-blasted and acid-etched surface

Raw material

Implant's sizes

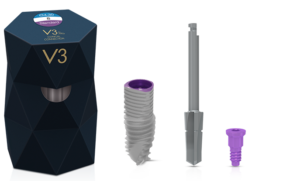

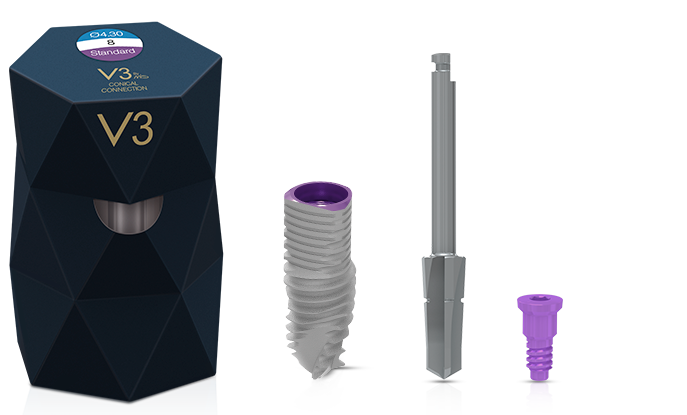

PACKAGE CONTENTS

v3-package-contents– Implant

– Final Drill

– Cover Screw

WARRANTY

warranty
