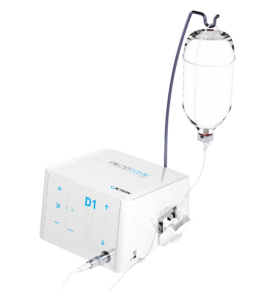

With Piezotome® CUBE bone surgery can be performed much faster with maximum power output and patient safety.  The CUBE is especially effective with atraumatic extractions.  Socket preservation, decreased patient pain and post operative swelling are enhanced with CUBE facilitating immediate implant placement.

TISSUE PRESERVATION

Frequency modulation is controlled for soft tissue preservation and better tissue recovery.

Linear tip vibrations and tip thinness provide precise and smooth cut resulting in minimal bone loss

Controlled irrigation flow reaches the end of the tip regardless of the orientation to reduce risk of bone over heating

POWER, WHEN YOU NEED IT MOST

With Newtron® technology, automatic and continuous frequency adjustment guarantees the level of power required in any situation

Dynamic Power System Inside (DPSI) continuously monitors tip pressure to deliver immediate power responsiveness, only when it is needed.
According to the resistance encountered, the D.P.S.I. provides:
– Increase + 30% the power for improved cutting performance
– Decrease – 10% the power, to be safer on soft tissues

CUBE LED handpiece
LIGHTER, BRIGHTER AND MORE POWERFUL THAN EVER

SUPERIOR OUTCOMES

FOR SURGEONS:

Fast and less invasive protocols

FOR PATIENTS:
Less traumatic surgical treatment that will improve patient acceptance and help them to get back in their life.

VERSATILITY

Each tip is designed to be adapted to patient anatomy. The exclusive range of surgical tips permits surgeons to broaden their surgical portfolio and get inspired to expand their expertise:

  • Atraumatic extractions preserving the table bone
  • Accelerated orthodontic treatment (Piezocision)
  • Precise crown lengthening
  • Predictable healing bone grafting
  • Safe lateral sinus lift
  • Crestal sinus lift providing better patient’s acceptance
  • Crest Splitting leaving the bone periosteum intact
  • Orthodontic Bone Stretching (O.B.S.) offering an alternative to ankylosed tooth extraction or malpositioned implant

MEET CLINICAL DEMANDS

Smaller footprint and touch sensitive screen for direct access to all device settings

Weighted multi-functional foot pedal provides absolute control of the device – No assistance is needed

Robust tips strengthened with surface treatments for long life

Autoclavable or single use irrigation lines available.

EVIDENCE BASED BENEFITS

  • Safety
  • Bone preservation
  • Comfort
  • Less post-operative pain
  • Optimal visibility
  • Superior healing

Around PIEZOTOME® Cube

3D PIEZO vs ROTATIVE

Surgery Extraction 3D protocol

Surgery Crest Splitting 3D protocol

Surgery Bone Surgery 3D protocol

Surgery Piezocision 3D protocol

Surgery Sinus Lift 3D protocol

Surgery Crown Extension 3D protocol

Surgery Intralift 3D protocol

IMPLANT CENTER 2

The alliance of technologies for safe and atraumatic bone surgeries
The alliance of the most advanced ultrasonic and rotary technologies ensures total independence in increasingly diverse clinical areas like:
Periodontics, endodontics, prophylaxis, restorative, pre-implant, implant surgeries.

PRODUCT BENEFITS

Eficacy

Highly reliable I-SURGE LED motor with its high torque (6Ncm) and wide speed range (100-40000Rpm). Boosted, the Piezotome® LED handpiece contains 6 ceramic rings for faster and secure surgeries.
Access to all dental treatments with the NEWTRON® LED handpiece.

Versality

3 functioning modes:

  • I-SURGE™ for implant surgeries (rotating motor)
  • Piezotome® for pre-implant ultrasonic bone surgery
  • NEWTRON® for all dental ultrasonic treatments.

NEWTRON® TECHNOLOGY

Patented technology for more preservation, efficacy and comfort.

Preservation

Security: non active on soft tissue (selective cut). Bone preservation thanks to tips highly precise cut, linear vibrations, controlled and regular amplitude.

Eficacy

Automatic frequency adjustment for maximal performance of each tip.Real-time power regulation for constant performances and effortless cut.

Comfort

For both patient and practitioner with secure and effortless cut, better tactile sense and reduced post-operative pain.

Large and robus tips range

Numerous robust tips strenghten by surface treatment to extend clinical applications:

  • Bone surgery
  • Lateral and crestal sinus lift
  • Crest splitting
  • Extraction
  • Piezocision™
  • Crown lengthening.

With the NEWTRON® LED handpiece, get access to over 80 different dental care tips, with exclusive designs, alloys and coatings.

Total Control

  • Large multi-functional progressive footswitch.
  • Autoclavable or single use irrigation lines available.
  • Regular irrigation flow thanks to the specific pump/cassette system.
  • Long-lasting accessories (wrench, tips, handpiece).

Evidence based benefits

  • Safety
  • Increase bone volume
  • Comfort
  • Less post-operative pain
  • Optimal visibility
  • Superior healing
